USB connectors, PCB boards, lamp boards, electronic components, switches, motors, microphones, triodes, LED lights, connectors soldering machine
Scope of application
Welding between USB A male and wire /Welding between USB A female and wire/Welding between Micro USB and wire/Welding between gold finger USB and wire
Welding between IPHONE5 end and wire/Folding type A welding between the male and the wire/Welding between USB3.1type-c and wire USB connectors, PCB boards, lamp boards, electronic components, switches, motors, microphones, triodes, LED lights, connectors
some jigs show
Ana özellikler:

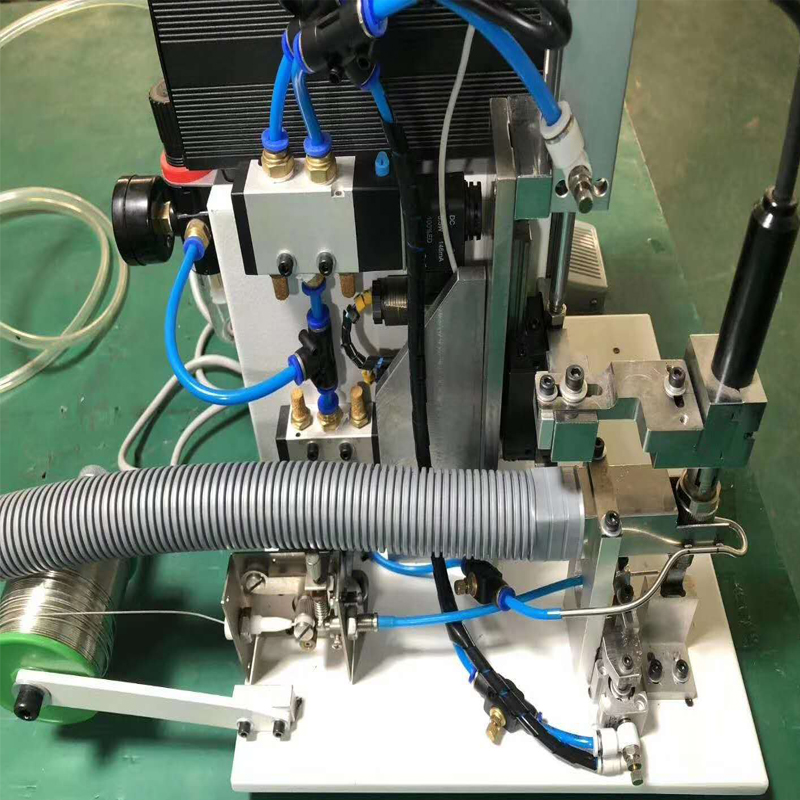

Product features of semi-automatic wire bonding machine:
- PLC + touch screen design is easy to operate
- Fast soldering speed, can weld multiple solder joints at once
- Strong versatility, the soldering time and the amount of tin can be adjusted, and only different fixtures can be replaced to weld different products;
- No soldering, novices can also work proficiently.
- Widely used in various USB connectors, PCB boards, lamp boards, electronic components, switches, motors, microphones, triodes, LED lights, connectors and other products.
- Can fit for 90w/./150W/200W /1500W different power and so on
- Easy to change the jigs and soldering tips and than fit for one other wire products
Main parts:
Specification:
| Drive | Drive form Pneumatic (7P enough) |
| Input voltage | AC220V |
| Güç | 200W |
| Input air pressure | 0.4-0.8Mpa / none |
| Temperature | 50-600 ℃ |
| Temperature error | ± 2 ℃ |
| NET Weight | 15KG |
| Dimensions | 500 * 550 * 600mm |
