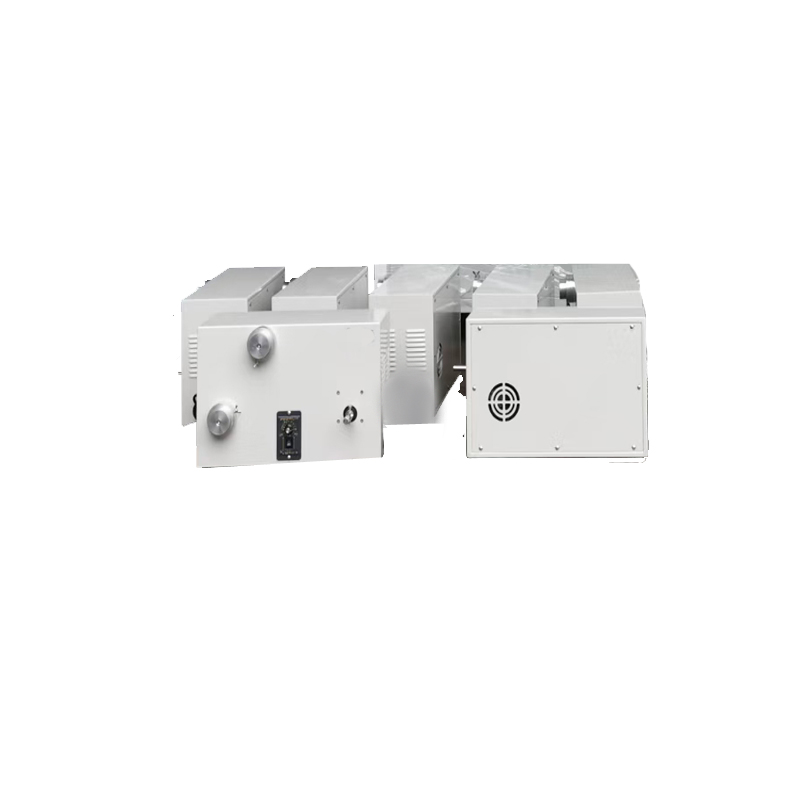

LED Strip Light Reel Machine Light strip reel, LED reel, light strip adhesive machine
This machine is suitable for all kinds of flexible light bar reels and adhesives, such as bare board, semi-tube, full tube, surface glue, waterproof, non-waterproof, COB, etc. LED patch light bar reels and adhesives at the same time. It can be applied to various widths of LED strips currently known in the market, 0-25mm can be adjusted arbitrarily, such as 6mm/8mm/10mm/12mm/16mm, etc., which can be adjusted and used according to the needs of users.
Light strip reel, LED reel, light strip adhesive machine
Main features :
1、The machine may manufacture’s led strip light’s wide range: 0~ 25mm. Assembling 3M double adhesive type and led Strip light light
2、The machine may manfacture led strip light type: waterproof,no waterproof,have the PVC cover or not led strip light.
3、The Production capacity is 1000 Meter/per hour on the basis of skillful worker.
4、The efficiency is double than last machine. And save one worker. And easy,fast.
5、The machine’s reel has Clockwise and counterclockwise direction,the aim is that led inside or outside
6、May adjust the manufacturing speed.
7、Operate the machine’s process is very easy, When the strip light is distorted,may use foot to stop it.
8、The efficiency is hign and reduce the worker’s repetitive movement.

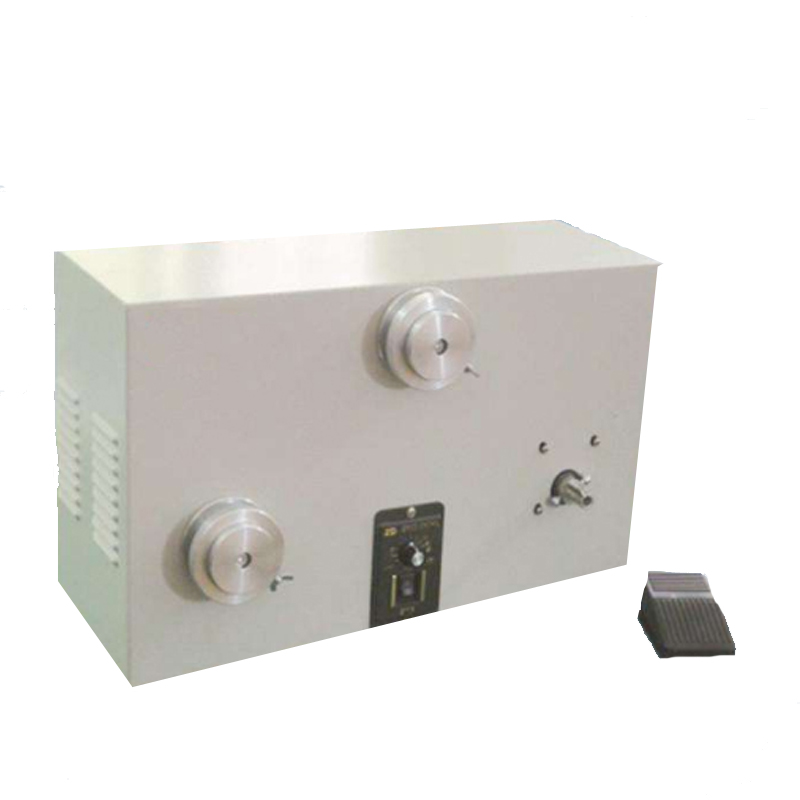

Main Parts
- May use the structur to adjust the force on the basis of strip light’s width.
- Fix 3M double adhesive type
- Adjust speed button
- Power Switch
- Fix Reel position,Automatic run.
- Direction Switch, The direction is clockwise when O positon, or not will be counterclockwise.
- 220V Pewer input line, three phase.
- Foot Switch,Contral the machine’s movment or not.
- Спецификация
| Модель | Спецификация | Власть | NO. of revolutions | Напряжение | Масса | size | effectiveness |
| HQ-500A | common type | 6W | 147 rpm | 220 В, 50-60 Гц | 7.5kg | 450*250*290mm | 500-600m/h |
| HQ-500C | High speed type | 15W | 300rpm | 220 В, 50-60 Гц | 8.5kg | 450*250*291mm | 900-1000m/h |
