Auto USB soldering machine android apple micro type C soldering machine USB cable soldering machine USB3.1type /
USB Cable soldering machine DC / USB wire soldering machine

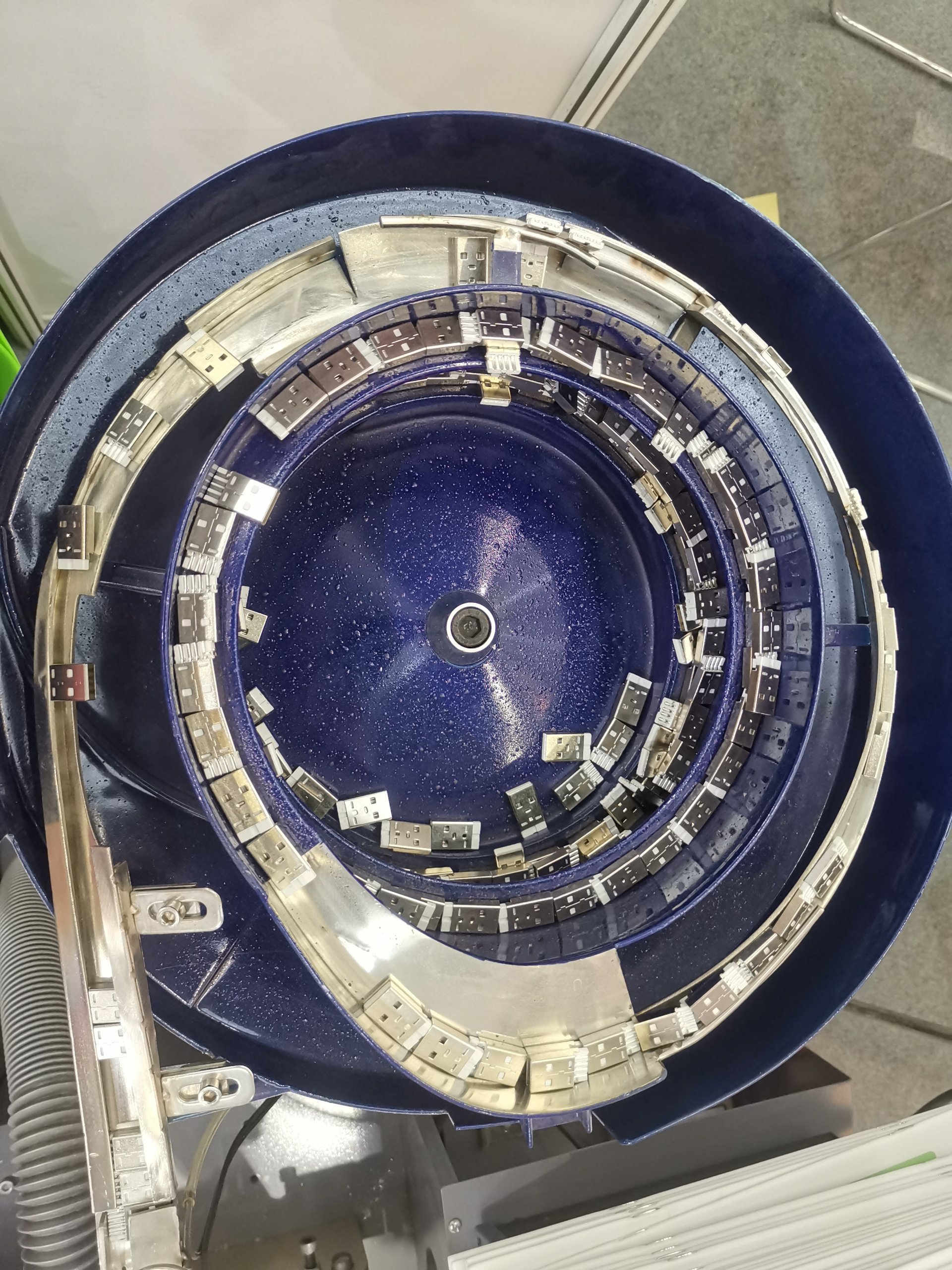

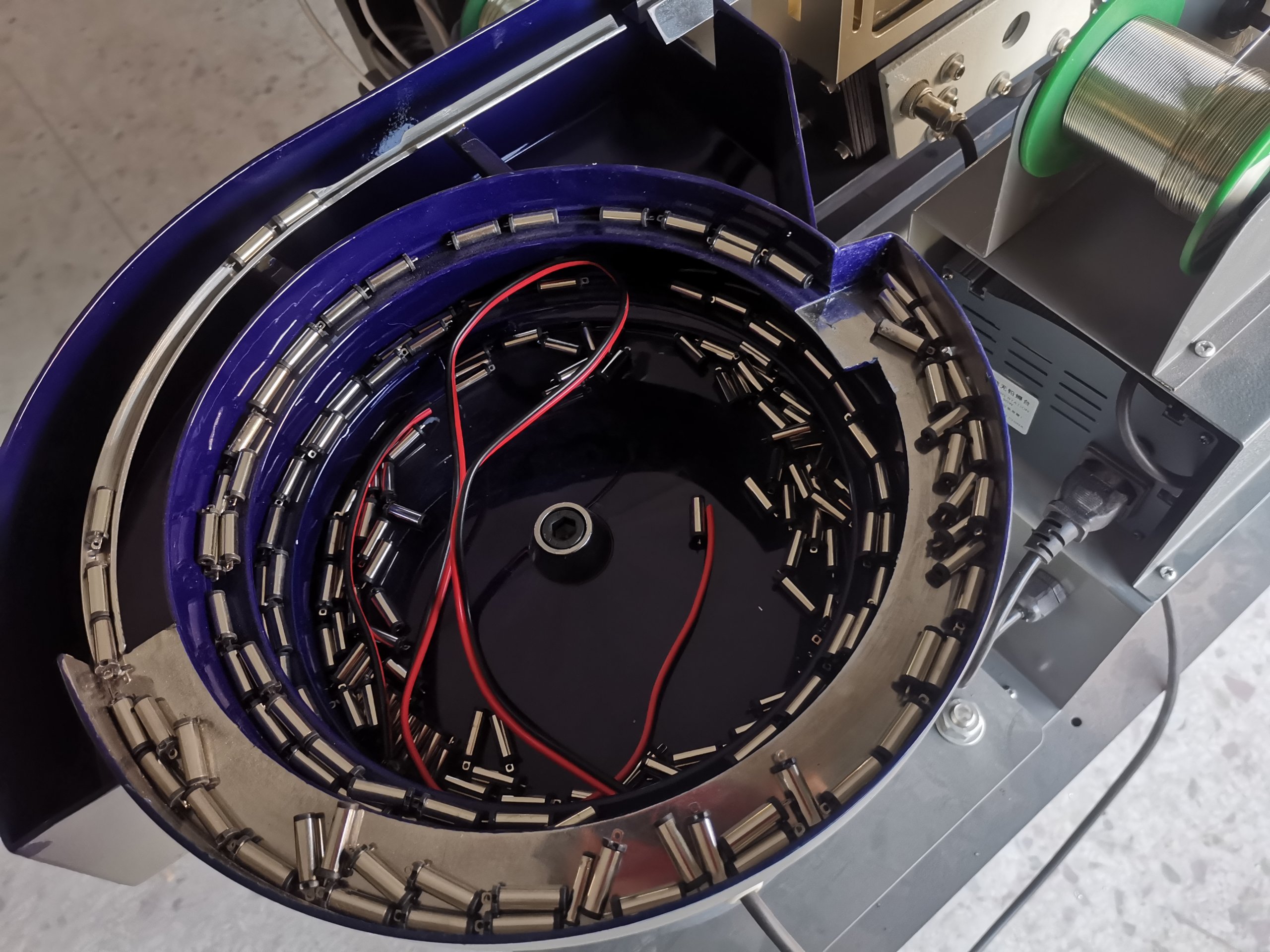

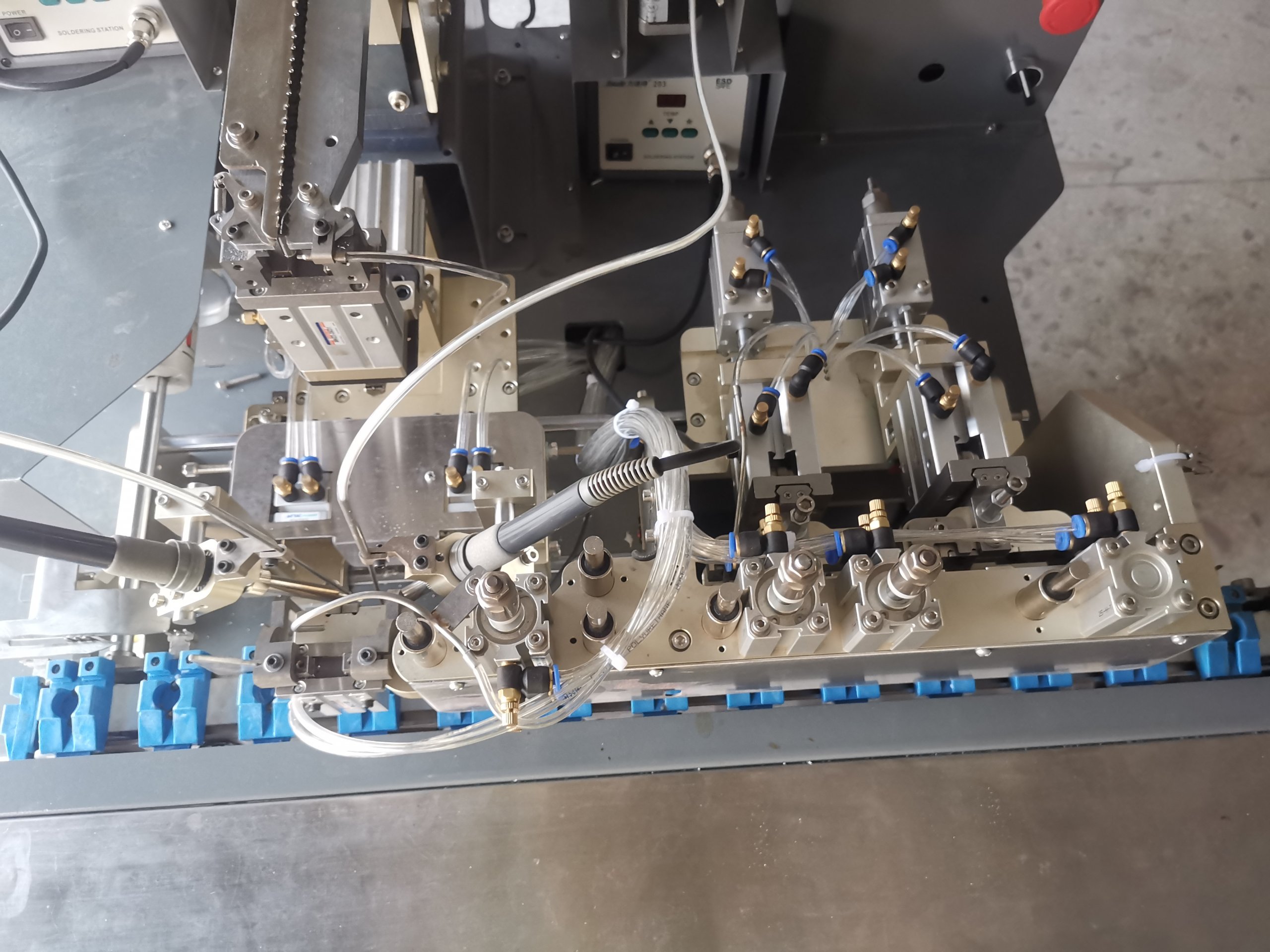

This is a fully automatic USB soldering machine. It is a new type of automatic equipment developed by our company. It only needs the card line. The machine automatically completes the flattening, cutting, peeling the endothelium + vibrating plate and automatically sending the USB terminal + automatic soldering machine + automatic Feeding. The labor cost is greatly reduced, and the labor intensity of the operator is advanced, the structure is advanced, the maintenance is convenient, the operation is simple, the service life is long, the output is high, the performance is stable, and the environment is environmentally friendly.
Scope of application

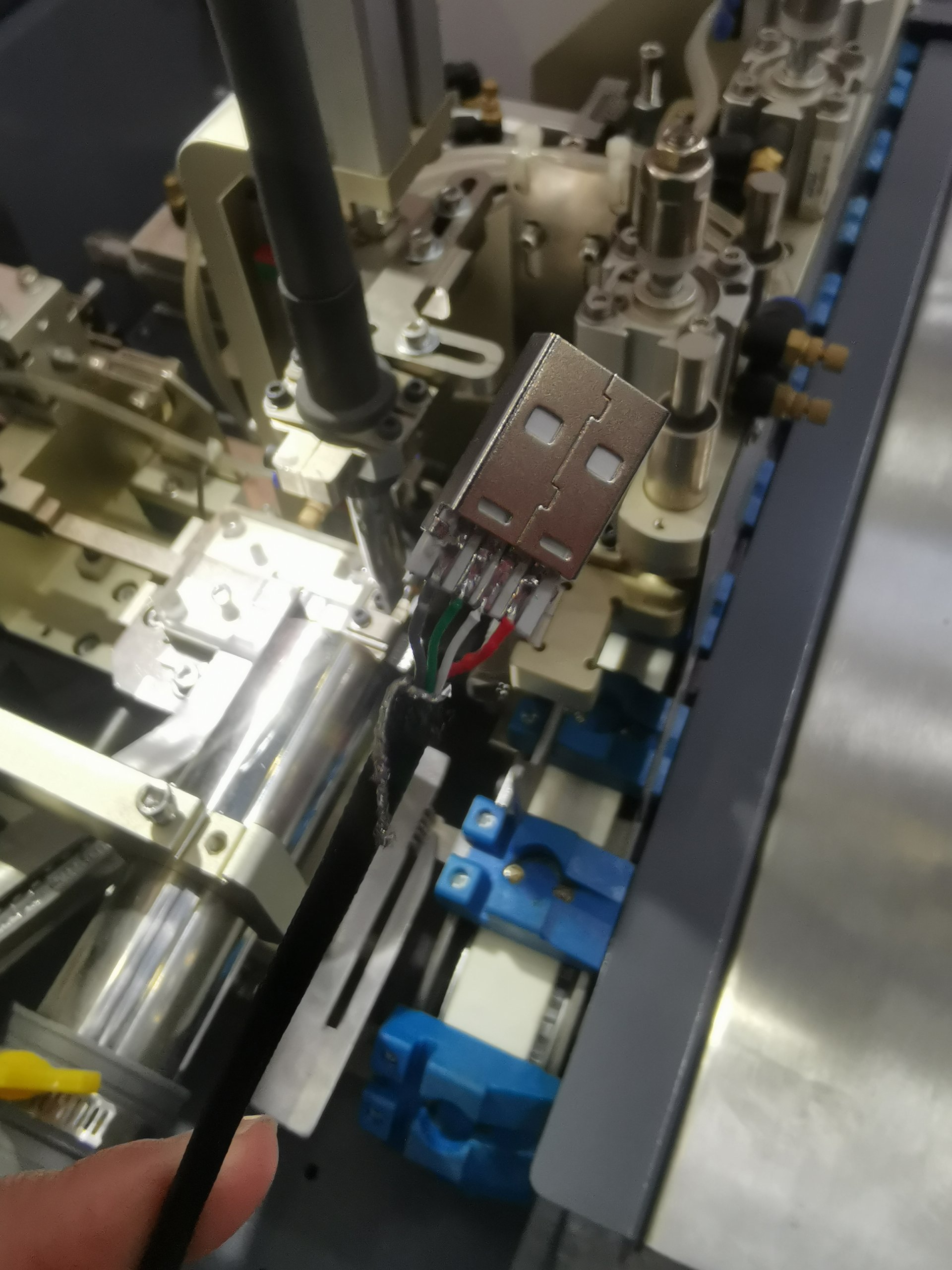

Welding between USB A male and wire /Welding between USB A female and wire/Welding between Micro USB and wire/Welding between gold finger USB and wire
Welding between IPHONE5 end and wire/Folding type A welding between the male and the wire/Welding between USB3.1type-c and wire
主な特徴:
Modular design, CNC finishing, equipment stability, quality and durability, the most streamlined design, the most user-friendly, the most reasonable, low failure rate
The highest capacity of the equipment: 1800 heads (4 points) / hour / person, the highest pass rate of 99.9%.
Compatibility is better. Compatible with more than 90% of the terminals on the market
The industry’s most cost-effective, most worry-free, most durable (the machine life is more than 6 years
one hour can solder 1200-1600 pcs usb cables
Main parts:
仕様：
Power supply voltage: AC110-220V
Power: 360W,
Air source pressure: 6-8kg/m2
Installation form: landing can be moved
Temperature control mode: high frequency eddy current
Welding material: tin wire
